35ton New Waste Material Handling for Scrap Steel Handler Grabber

Upgrade your factory's waste material handling with our 35ton New Scrap Steel Handler Grabber. Efficient and durable, perfect for steel scrap handling.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SWMH350K
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Large-Scale
Certification
CE, ISO9001: 2000, ISO14001
Condition
New
Dual Power
Electrical + Diesel
Max. Working Radius
10.2 M
Max. Lifting Height
11 M
Max. Lifting Moment
525kn.M
Warranty
One Year
Travel Speed
15km/H
Tire
Solid
Transport Package
Nude
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84294990
Production Capacity
100 PCS / Year

Packaging & Delivery

Package Size
1100.00cm * 310.00cm * 359.00cm
Package Gross Weight
32000.000kg

Product Description

SINOWAY Mobile Handling Equipment

Mobilel waste handlers work in warehouses and production facilities to move products. This might mean finding materials on the shelves and wrapping them and putting them on a delivery truck, or pulling materials off the truck and putting them in the proper shelf spot.

Sinoway SWMH seris wheeled material handler equipment is a mobile handling, stacking and demolition equipment, with a number of advantages. The folding boom is used to overcome the difficulty of the truck crane when the soft rope of the crane is easy to rotate and the operation without the downward pressure, and to overcome the pressure of the truck crane. The more solid stacking boom overcomes the shortcomings of the truck crane when the soft rope of the truck crane is easy to rotate and the work has no downforce and the grasping effect of the more solid materials is poor. It is not enough for the straw picking, wood bamboo waste paper, sand and gravel foam loose soft material to carry out poor picking effect.

Main Advantage
This product has a "double force" system for internal combustion engine and 380V electric interchange operation; "double force" system with explosion-proof machine and electric interchangeable operation; "double force" system with optional explosion-proof machine and electric interchange operation; The use of explosion-proof machine, electric interchangeable "double force" system; optional explosion-proof machine, fully enclosed electrical, fire protection and save 60% energy consumption compared to internal combustion engine operations; can quickly replace different hydraulic grabs.

The electric operation has over-current and heat-discharge protection devices;
Phase sequence automatic identification to prevent oil pump reversal device;
Hydraulic system power failure, oil self-locking protection device;
There are a number of complex movements during the operation to improve efficiency;
The hydraulic system is equipped with an air-cooled radiator;
The gripper can automatically turn and reversing 360 degrees;
When the electric control room is electrically operated, there is a dual-purpose air conditioning unit.

Product Show

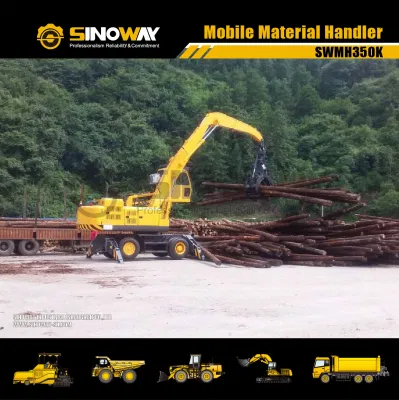

35ton New Waste Material Handling for Scrap Steel Handler Grabber

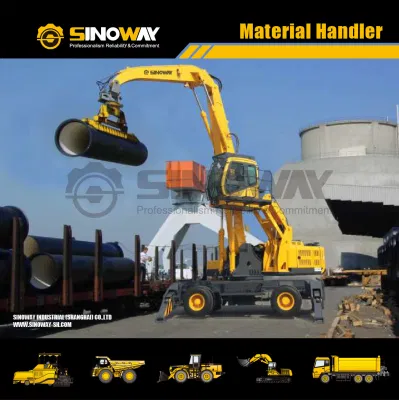

35ton New Waste Material Handling for Scrap Steel Handler Grabber

Specifications

Power
Electrical motor 110kw
Rated speed 1480rpm
Max. swing speed (electrical motor) 5r/min
Diesel engine 154kw
Rated speed 2200rpm
Max. swing speed (diesel engine) 8r/min
Fuel tank capacity 440L
Main Technical Specification
Max. lifting capacity@Min. working radius 13000kg
Max. lifting capacity@Max. working radius 2000kg
Min. working radius 4000mm
Max. working radius 14000mm
Max. lifting moment 52.5t.m
Max. swing torque 107KN.m
Boom length 8000mm
Arm length 6000mm
Main luffing time (Max. speed)
Fall boom (electrical / diesel) ≤17s/≤11s
Rise boom (electrical / diesel) ≤21s/≤11s
Auxiliary luffing time (Max. speed)
Fall boom (electrical / diesel) ≤20s/≤11s
Rise boom (electrical / diesel) ≤9s/≤6s
Outrigger
Fall stretching (electrical / diesel) ≤16s/≤11s
Fall retracting (electrical / diesel) ≤12s/≤10s
Outrigger distance
Lengthways 4500mm
Transversal 4200mm
Travelling System
Max. travelling speed 15km/h
Min. turning radius 7.6m
Max. gradeability 18%
Min. ground clearance 250mm
Max. traction force 109kN
Approach angle 15.0°
Departure angle 15.0°
Braking distance (speed: 15km/h) ≤6.5m
Operating weight 35000kg (including clam shell)
Dimension
A. Overall length 11000mm
B. Overall width 3500mm
C. Overall height 3190mm
D. Wheelbase 3200mm
E. Max. lifting height of cab 5900mm
F. Rear-end length/slewing radius 3650mm
G. Counterweight clearance 1430mm
H. Upper-structure width 2940mm

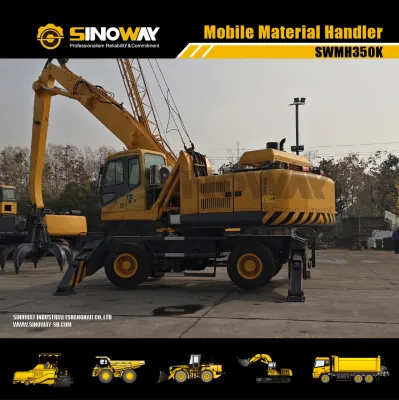

35ton New Waste Material Handling for Scrap Steel Handler Grabber

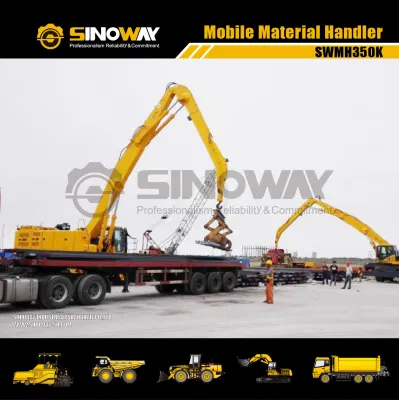

35ton New Waste Material Handling for Scrap Steel Handler Grabber
