Basic Info.
Model NO.
970E
Drive Type
Internal Combustion Drive
Bucket Capacity
4.3cbm
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight with Cab
70500-70960 Kg
Engine Power
373 Kw (500HP) @ 1800 Rpm
Maximum Travel Speed (High)
4.4 Km/H
Maximum Travel Speed (Low)
2.7 Km/H
Arm Breakout Force
319 Kn
Bucket Breakout Force
360 Kn
Track Shoe Width (Std)
650 mm
Digging Reach
11450 mm
Digging Depth
7180 mm
Emission
Tier 3 / Stage Iiia
Transport Package
Nude Package
Specification
12230*4260*4710mm
Trademark
Top Brand
Origin
China
Production Capacity
50pieces/Month
Product Description

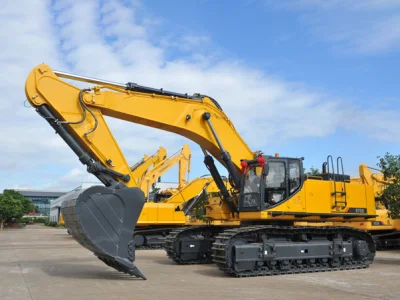

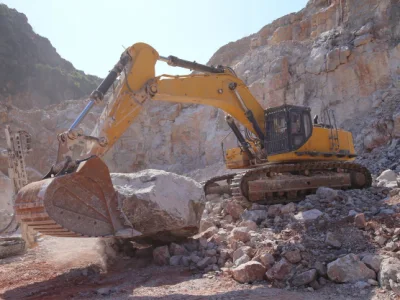

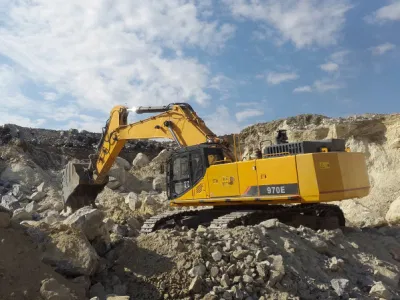

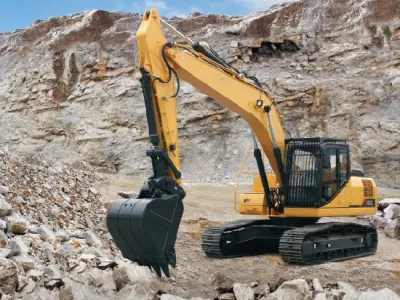

China Brand Big Large 70Ton Hydraulic Crawler Excavator 970E
Products Description
Products Description
* The 970E is powered by the latest QSX15 engine with a rated net power of 357 kW (479 hp) @ 1800 rpm in compliance with EU Stage IIIA emission standards.
* Heavy duty undercarriage components, reinforced idler frame and optional full track guard guarantee the integrity of our undercarriage.
* ROPS (Roll Over Protection System) and FOPS (Falling Object Protection System) safeguard your operator in the toughest environment.
* Visibility is key to protecting your operator and workers on site. The large glass surface area, spacious cab, combined with the rear-view camera, provides an extraordinary view of the 970E's surroundings.
* Heavy duty undercarriage components, reinforced idler frame and optional full track guard guarantee the integrity of our undercarriage.
* ROPS (Roll Over Protection System) and FOPS (Falling Object Protection System) safeguard your operator in the toughest environment.
* Visibility is key to protecting your operator and workers on site. The large glass surface area, spacious cab, combined with the rear-view camera, provides an extraordinary view of the 970E's surroundings.
Specifications
| Operating weight with cab | 70500-70960 kg |
| Engine power | 373 kW (500hp) @ 1800 rpm |
| Bucket capacity | 4.0/4.3/5.2 m³ |
| Maximum travel speed (High) | 4.4 km/h |
| Maximum travel speed (Low) | 2.7 km/h |
| Maximum swing speed | 6.8 rpm |
| Arm breakout force | 319 kN |
| Arm breakout force Power boost | 347 kN |
| Bucket breakout force | 360 kN |
| Bucket breakout force Power boost | 393 kN |
| Shipping length | 12230 mm |
| Shipping width | 4260 mm |
| Shipping height | 4710 mm |
| Track shoe width (std) | 650 mm |
| Boom | 6600 mm |
| Arm | 2900 mm |
| Digging reach | 11450 mm |
| Digging reach on ground | 11170 mm |
| Digging depth | 7180 mm |
| Vertical wall digging depth | 4070 mm |
| Cutting height | 10950 mm |
| Dumping height | 7030 mm |
| Minimum front swing radius | 4900 mm |
| Model | QSX15 |
| Emission | Tier 3 / Stage IIIA |
| System maximum flow | 2×450 L/min (2x119 gal/min) |
| System pressure | 34.3 MPa |
