Crawler Grab Shovel Super-Above Naked in Container Wheel Hydraulic Excavator

Super-Above Hydraulic Excavator: Grab, shovel, and crawl with ease. Naked in container for easy transport. Wheel feature for mobility. Buy direct from factory!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
mc
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.04 Cubic Metre
Certification
CE
Condition
New
Speed(F)
4.3/2.2 Km/H
After-Sales Service Provided
Engineers Available
Max Digging Radius
3900mm
Maximum Digging Height
3475mm
Transport Package
Naked in Container
Specification
CE
Trademark
Super-Above
Origin
Jiangsu, China
HS Code
8474390000
Production Capacity
10000PC/Year

Product Description

Product Description

Chinese 1.8 Ton Mini Crawler Excavator


1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the
maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket
ensure strong soil holding capacity.

Crawler Grab Shovel Super-Above Naked in Container Wheel Hydraulic Excavator
Crawler Grab Shovel Super-Above Naked in Container Wheel Hydraulic Excavator
Crawler Grab Shovel Super-Above Naked in Container Wheel Hydraulic Excavator


 TECHNICAL PARAMETERS
Description Unit Parameter value
Operating weight Kg 1795
Bucket capacity 0.04
Engine Model / D782-E3B

-CBH-1
Style Direct injection /
Four strokes /
Water cooling /
Turbo-charging / ×
Air to air intercooler / /
No. of cylinders / 3
Output power kw/rpm 9.8/2300
torque/speed N.m 44.5/1800
Displacement L 0.778
  Travel speed(H/L) km/h 4.3/2.2
Main performance Rotating speed r/min 9.5
  Gradeability ° 30°
  Ground pressure kPa 28.5
  Bucket digging force kN 16
  Arm crowd force kN 10
  Maximum traction kN 15.6
  Main pump / /
Hydraulic system Rated flow of main pump L/min 56.8
  Pressure of prime valve MPa 22
  Pressure of travel system MPa 22
  Pressure of swing system MPa 11
  Pressure of pilot system MPa 3.9
Oil Capacity Fuel tank capacity L 18
Hydraulic tank capacity L 17
Engine oil capacity L 3.8
  Overall length mm 3560
Appearance size Overall width mm 1240
  Overall height mm 2348
  Width of platform mm 990
  Length of crawler mm
  Overall width of chassis mm 990/1240
  Width of crawler mm 230
  Track length on ground mm 1270
  Crawler gauge mm 760/1010
  Clearance under counterweight mm 450
  Min. ground clearance mm 145
  Min. tail swing radius mm 620
  Height of track mm
  Max. digging height mm 3475
Working scope Max. dumping height mm 2415
  Max. digging depth mm 2290
  Max. vertical wall digging depth mm 1750
  Max. digging reach mm 3900
  Min. swing radius mm 1530
  Standard Length of boom mm 1690
Worker Length of arm mm 1100
  Bucket capacity 0.04

Crawler Grab Shovel Super-Above Naked in Container Wheel Hydraulic Excavator

FEATURES & APPLICATION

The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal operations.

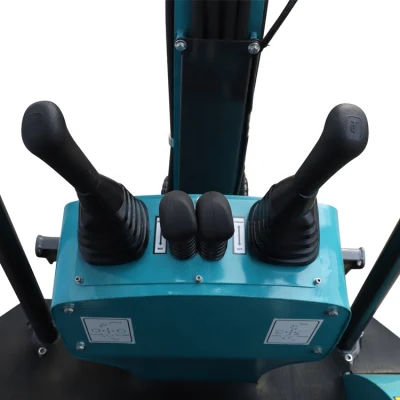

The wet type steering clutch and brake can prolong the service life and are interlinked with each other toguarantee the rapid and flexible steering
controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineeringconstructionsfor roads, farms, water
conservancy projects, municipal projects, and energy projects.

Crawler Grab Shovel Super-Above Naked in Container Wheel Hydraulic Excavator
