Product Description

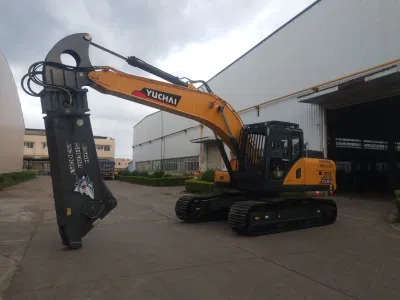

Hydraulic Shears are perfectly designed for primary crushing. It can be widely used to breaking down and remove building structures in reinforced concrete.
1. JISAN crusher designed with compact structure as compared with wide opening width.
2. Cylinder demonstrates the strong power and has excellent durability.
3. JAW which is made of strong quality of the material and heat treatment is light and has excellent abrasion-resistant.
4. Grease is injected with a special structure for each part is sealing process.
5. Really simple head adjustment device maximize the operation efficiency

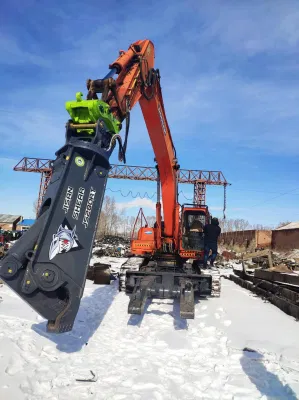

6. JISAN crusher can be suitable for a variety of working environment, not only outstanding performance in handling broken-dismantled work, but also in recycling of concrete material.
1. Hydraulic study Rotation: Full 360° hydraulic rotation motor, apply for any location
2. Speed Valve: Speed Valve reduces cycle time
3. High quality Cylinder: Made of special designed sealing structure, strong power with long durability

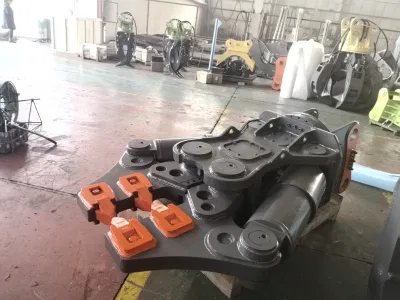

4. Jaw and Tooth: Use high strength steel, wide jaw opening
5.Replaceable blade, easy for maintenance
6. Made of high strength abrasion-resistant steel, long durability
| Item/Model | Unit | JS10V | JS15V | JS20V | JS25V | JS30V | |
| Suitable Excavator | T | 6-9 | 15 | 18-24 | 35 | 45 | |
| Weight | kg | 1250 | 1580 | 2100 | 2750 | 5350 | |
| Opening | mm | 750 | 890 | 980 | 1100 | 1400 | |
| Blade Length | mm | 140 | 160 | 200 | 240 | 300 | |
| Height | mm | 1620 | 2100 | 2280 | 2450 | 2850 | |
| Width | mm | 1120 | 1280 | 1450 | 1720 | 2350 | |
| Crushing Force | metric ton | 45 | 58 | 70 | 85 | 95 | |
| Cutting Force | metric ton | 90 | 115 | 130 | 165 | 260 | |
| Rated Pressure | bar | 300 | 320 | 320 | 320 | 320 | |
| Rated Flow | Lpm | 180 | 230 | 240 | 260 | 380 | |
| Working Pressure | bar | 260 | 280 | 300 | 300 | 300 | |
| Cycle Time | Open | sec | 1.8 | 2.1 | 2.9 | 3.4 | 4.3 |
| Close | sec | 1.7 | 2.3 | 2.7 | 4.1 | 5.5 | |
Certification
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
1. 7Days*24Hours after-sales service by email and phone
2. Your inquiry will be replied in 24 hours during workdays
3. Our customer-oriented sales and technical team are always at your service
4. OEM Service available
5. Warranty: 6 months warranty for hydraulic shear, beyond the warranty period, all spare parts offered to you with our cost price.
