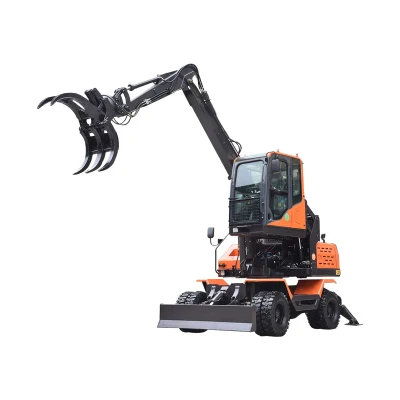

Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket

Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket is essential for efficient factory operations.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
JG100Z
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
Boom Length
3680mm~4000mm
Arm Length
1860mm~2650mm
MOQ
1 Set
Transport Package
Nude Packing
Specification
6450*2230*3050mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000 Units/ Year

Product Description

Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.

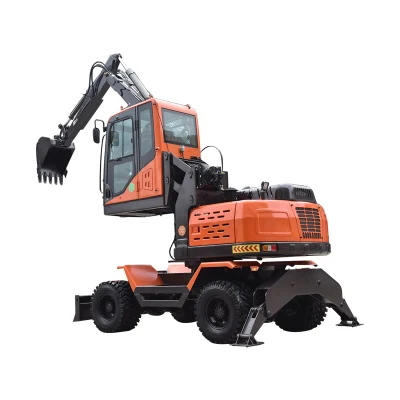

Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious BucketSince the inception of our firm, we are highly dedicated towards providing a quality approved array of JG Backhoe Loader Excavator that is checked before being delivered.
Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket
SPECIFICATIONS
RANGE OF OPERATION Boom length 3670mm
Arm length 1860mm-2650mm
Max radius of capture 7000-7800mm
Grab the biggest opening width 1250mm
Grab the minimum opening width 80mm
Maximum radius weight capacity 800-900kg
Grapple rotation angel 360°
Maximum Dumoing height 4650-5100mm
Back-End radius of gyration 198mm
Max lifting height of cab 800mm
Max extended distance of arm 800mm
DIMENSION (Length*width*height) travel position 6450*2230*3050mm
Wheel base 2430mm
Track(Front/rear) 1850mm/1750mm
Ground clearance of counterweight 1060mm
Min ground clearance 200mm
TECHNICAL PARAMETERS Angle of rotation 360°
Machine weight 8600kg
Engine model YN38GBZ/4102(Turbocharged)
Rated Power 65KW
Rated Speed 2400r/min
Hydraulic system working pressure 21Mpa
Hydraulic system flow 150L/min
Variable piston pump 71ml/r
Max Hauling force 58.5KN
Walking speed 25km/h
Grade Climbing ability 58%/30°
Tyre model 825.16
Volume Of Bucket 0.35m3
Revolution Overdrive Pressure 20Mpa
Full circle swinging time 5.5s
Fqt Fuel Quantity  ≥4L/h
Hydraulic Tank Capacity  110L
Capacity Of The Fuel Tank 110L

Company

Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket

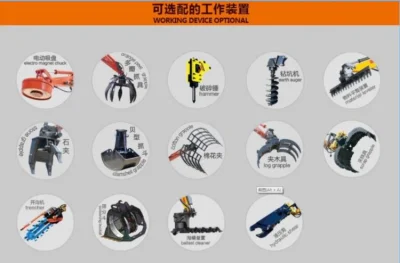

Optional Device
Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket

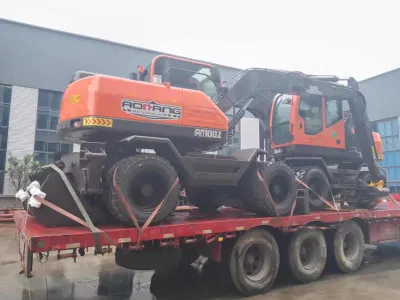

Packing

Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket

Workshop
Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket


Process
Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket
Exhibition Show

Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket
Certificates
Great Tool Hydraulic Bulk Material Handling Equipment Materials Handler with Multifarious Bucket
