Hot Selling 42ton Material Grabbing Excavator for Coal Handling

Get the top-performing 42ton Material Grabbing Excavator for Coal Handling from our factory. Durable, efficient, and hot-selling. Buy now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
swcmh420
Size
Medium-Sized
Certification
ISO9001: 2000, ISO14001
Condition
New
Max. Lifting Height
12 M
Max. Working Radius
10.5 M
Max. Lifting Monent
300 Kn.M
Max. Travel Speed
5.0 Km/H
Warranty
1 Year
Operating Weight
42 Ton
Transport Package
Nude
Specification
iso
Trademark
SINOWAY
Origin
China
HS Code
84314990
Production Capacity
100 PCS / Year

Product Description

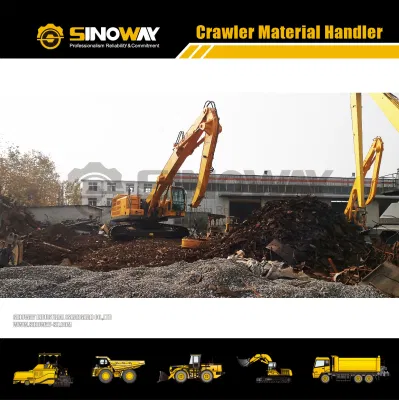

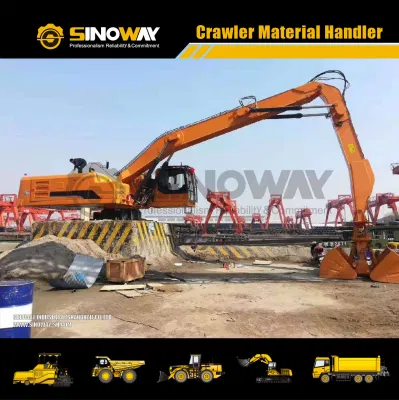

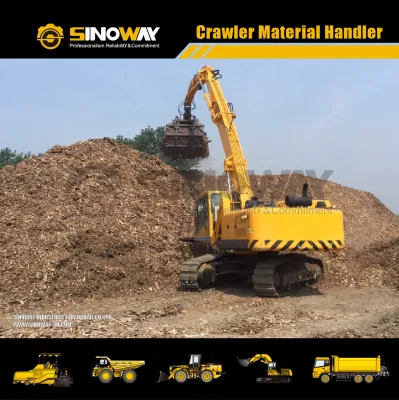

Main Features of SINOWAY Crawler Material Handlers SWCMH420

Increased Engine Output
Engine output has been increased, compared to the predecessor models, giving the system more torque for more powerful and faster movement. Furthermore,load peaks are compensated cleverly, meaning maximum torque is available at all times for maximum handling capacity.
High Swing Torque
The separate hydraulic pump in the closed slewing circuit only supplies hydraulic fluid to the swing mechanism. The maximum delivery volume is thus available at any time for turning the uppercarriage
for fast and dynamic rotational movements.
Sensitive Hydraulics
The optimal harmonisation between the engine and the control valve allows a fast and direct response from the hydraulics to the input command. This is controlled proportionally to enable smooth and gentle movements to be executed when the joystick is moved.
Cabin with Ergonomic Design
The modern cab design provides excellent conditions for healthy, concentrated and productive work in maximum comfort. The colour touchscreen display, the controls and operator's seat Comfort are all coordinated to form a perfect ergonomic unit. In addition the ergonomic joysticks allow the machine operation to be both pleasant and precise.

Dual power (Electric power + Diesel power)
Motor power: 185hp
Diesel power: 270hp
Hydraulic transmission,
2.0 m³ clamshell bucket
A/C,
Optional: lifting magnet; five peel grab, sorting grab, log grapple etc. Hot Selling 42ton Material Grabbing Excavator for Coal Handling
Dimensions
Machine length 11000m
Machine height 3190mm
Machine width   3327mm
Track length 4622mm
Maximum lift height of the cab 4897mm
Tail turning radius  3504mm
Turntable height off the ground 1251mm
Turntable width 2940mm
Width of walking platform 627mm
Transportation dimensions exclude width of the walking platform.
The cap is optional: Fixed cab / heightened cab / lift-able cab

Working Scope
Lifting Performance Parameters
Radius 3.5 4.5 6.0 7.5 9.0 10.5
Height
Max. height
12
10.5   7.0   5.0
9     6.0 5.0
7.5     5.9 4.9 4.0
6.0   7.0 5.8 4.7 3.9
4.5 10.0 6.8 5.7 4.6 3.8
3.0 9.8 6.5 5.5 4.4 3.7 3.0
1.5   6.3 5.4 4.2 3.4 2.8
0   6.0 5.2 4.1 3.2
-1.5     5.0 4.0 3.0
Max. depth

Length of the boom is optional, and the optimum proportion can be obtained according to the actual demand of the work.

Technical Parameters
Power
Engine 154kw
Electric motor 110kw
Fuel tank   440L
Walking System
Walking speed   3.6/5.2km/h
Max. traction force 160KN
Grade ability   25%
Hydraulic System
Max. flow 2 x 214L/min
Max. working pressure 31MPa
Hydraulic oil tank 440L
Pilot pressure 3.8MPa
Main Performance Parameters
Total weight 42t
Max. lifting moment 50t.m
Max. swing speed 8r/min (Single power type )
Max. swing torque 90KN.m
Hot Selling 42ton Material Grabbing Excavator for Coal Handling
