Hydraulic Crawler Material Handler on Track for Scrap and Waste

Get the job done with our Hydraulic Crawler Material Handler on Track for Scrap and Waste. Built for the toughest conditions. Shop now.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SWRSC700H
Size
Large-Scale
Certification
ISO9001: 2000, ISO14001
Condition
New
Product Name
Material Ahndler
Brand
Sinoway
Model
Swrsc700h
Lifting Torque
68 T.M
Capacity
300-400 Ton
Max. Travel Speed
24 M/S
Control Method
Hydraulic Pilot
Warranty
One Year
Transport Package
Nude
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84314990
Production Capacity
100 PCS / Year

Product Description

Main Features

The operation process adopts full hydraulic drive to realize stepless speed change of all actions, which overcomes the impact of operation and makes the overall operation process more stable, safe and reliable.
The pilot control is adopted to make the operation lighter, reduce the labor intensity and improve the working efficiency. After changing different grabs, loading and unloading, stacking, reloading and feeding of various bulk cargoes can be realized, thus realizing multi-function of one machine.
The operation process adopts full hydraulic drive to realize stepless speed change of all actions, which overcomes the impact of operation and makes the overall operation process more stable, safe and reliable.
The pilot control is adopted to make the operation lighter, reduce the labor intensity and improve the working efficiency. After changing different grabs, loading and unloading, stacking, reloading and feeding of various bulk cargoes can be realized, thus realizing multi-function of one machineonomic unit. In addition the ergonomic joysticks allow the machine operation to be both pleasant and precise.

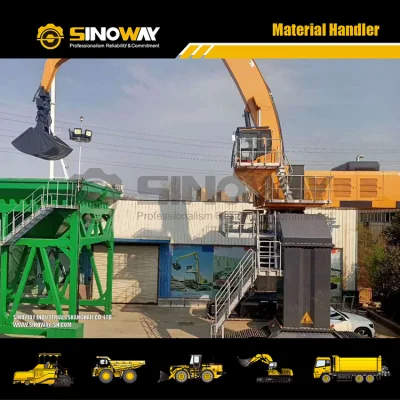

Product Show
Hydraulic Crawler Material Handler on Track for Scrap and Waste
Hydraulic Crawler Material Handler on Track for Scrap and Waste

Specification

Unloading machine power form Can provide motors, diesel power, diesel and electric hybrid
Lifting torque 68t.m
Max. wheel pressure 32t
Walking way Can provide walking track (with track clamp deice, power brake function), crawler walking
Way of working 360° ratating hydraulic grab grasping (cylinder, tubing with guards)
Rated production efficiency Wood length 3m @ 420m³/h
Wood length 6m @ 840m³/h
Working cycle time < 45s
Control method Hydraulic pilot
Suitable rail All kinds of international specifications rail
Swing speed 9.6r/min
Walking speed 12m/min
Working radius 13m
Working height range 15 m to -3m
Grabber diameter 1.5m
Power supply 380 / 220 /24 V
Electrical equipment protection level IP65
Hydraulic Crawler Material Handler on Track for Scrap and Waste
Hydraulic Crawler Material Handler on Track for Scrap and Waste

Why Choose Us

Hydraulic Crawler Material Handler on Track for Scrap and Waste
Hydraulic Crawler Material Handler on Track for Scrap and Waste
Hydraulic Crawler Material Handler on Track for Scrap and Waste
Hydraulic Crawler Material Handler on Track for Scrap and Waste


Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
