Min Skid Steer Front Loader Excavator Jc45g with CE

Get the reliable and durable Min Skid Steer Front Loader Excavator Jc45g with CE from our factory. Perfect for construction and landscaping projects.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
JC45G
Type
Small Loader
Transport Package
International Package
Trademark
RUMLIFT
Origin
China
HS Code
8429510000
Production Capacity
3000/Year

Product Description

Advantage :

1engine : Chinese Changchai and Japan YANMAR , Mitsubishi engine, Italy EPA4 Kohler option
2.Italian BP hydraulic pump
3.American White motor
4.hydraulic self-leveling system
5.bobcat type quick coupler

Model JC35 JC45G JC60G JC65G JC70 JC100
Rated Operating Capacity       500       700       850       900       1000       1200
Tipping load(Kg)       1000       1400       1700       1800       2000       2400
Bucket Capacity(m3)       0.25       0.4       0.5       0.5       0.5       0.4-0.5
Lifting force(kg) 1000       1950       1950       2410       2700       2200
Hydraulic Pump Flow(L/min)       40       75       75       75       100      75/125
Engine power(HP)       35       50       60       65       80       100
Weight(Kg)       2200       2750       3240       3300       3600       3800
Max. Travel Speed(km/h)       8       12       12       10       12       12/18
Grade ability (° )       20       20       20       20       20       20
Tire     8.5- 15      10- 16.5 12-16.5 12- 16.5 12- 16.5  12-16.5
Fuel hyd. Oil capacity(L)       50/50       60/60       80/80       80/80       70/70 80/80
A. Height at Maximum Extension       3300       3670       4000       3690       3690       3780
B. Hinge Pin Height   mm       2725       2900       3100       2920       2920       3150
C. Total Height     mm       2000       2050       2160       2160       2160       2040
D. Length with Bucket     mm       2950       3420       3490       3540       3540       3450
E. Length without Bucket     mm       2300       2640       2750       2780       2780       2540
F. Width with Bucket   mm       1400       1740       1880       1880       1880       1900
G. Track Width    mm       1080       1450       1500       1500       1500       1560
H. Wheelbase    mm       891       991       991       1091       1020       1020
J. Ground Clearance  mm       140       185       205       205       200       260
K. Dumping Angle          40°       40°       40°       40       40       45
L. Dumping Height   mm       2050       2310       2400       2330       2330       2400
M. Maximum Reach  mm       790       710       750       710       700       700

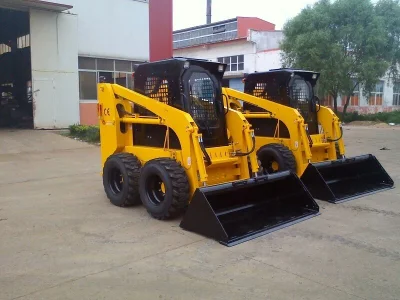

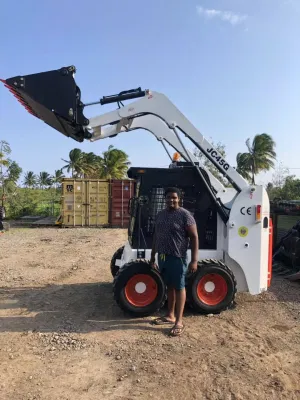

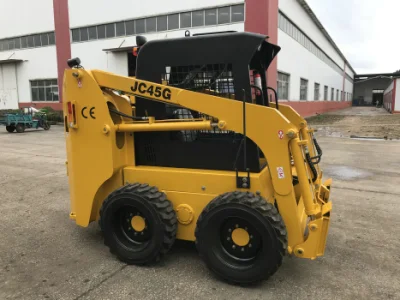

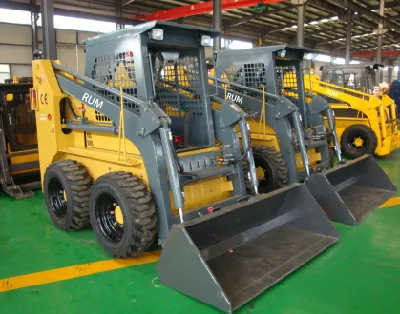

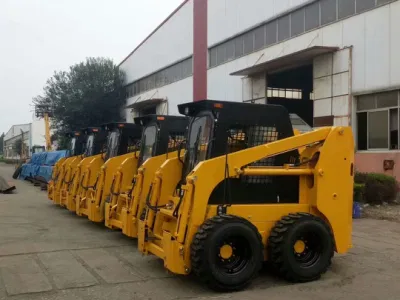

Min Skid Steer Front Loader Excavator Jc45g with CE
Min Skid Steer Front Loader Excavator Jc45g with CE
FAQ:

Q1: How long is the  Warranty for  RUM LIFT product?
A1: RUMLIFT provides 24 months or 2500 hours for the whole machine from on board time.

Q2: How about the delivery time?
A2: Usually RUMLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.

Q3:  How about the continuous working time for the electric series forklifts  & Stackers  ? And How long time to charge the battery full ?

A3: RUMLIFT battery continuous working time is around 4-6hours( depend on battery volume and people operation ), when the red light of dashboard flashing ,need to charging ,about 5 hours can be finish ,RUMLIFT'S charge is intelligent,once the battery is full , will stop to charging .

Q4 How about the battery working life ?
A4: our Battery is from DIN standard battery ( Germany technology), can be working 6 years without any problem.

Q 5 : Can  RUM LIFT provide customized products? OEM products or ODM products?
A5: Yes, RUMLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.

Q 6 : What's the specification of the chargers?
A6:  Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.

Q 7 : Could we request our own color for the products?
A7: Yes, of course,We have orange red ,red ,white ,green, blue and so on , you just need to offer us the RAL code.
