Basic Info.
Product Description
Mini Excavator 1ton 0.8ton 1.5ton 1.7ton 2.0ton Crawler Electronic Mini Digger Diesel Hydraulic CE ISO EPA4 EURO5 Wholesale Flexible Chasis Small Excavator
Product Description

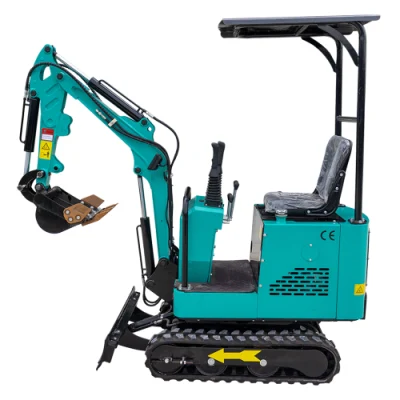

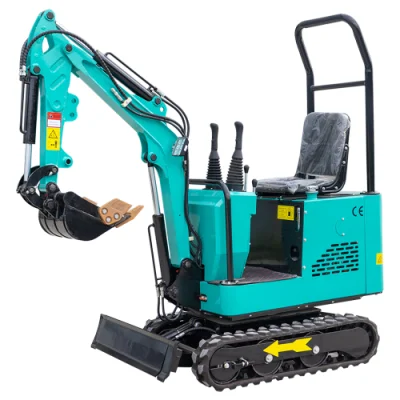

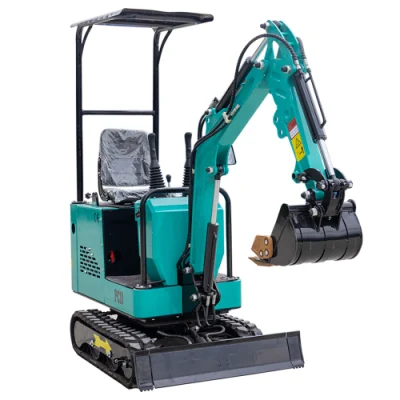

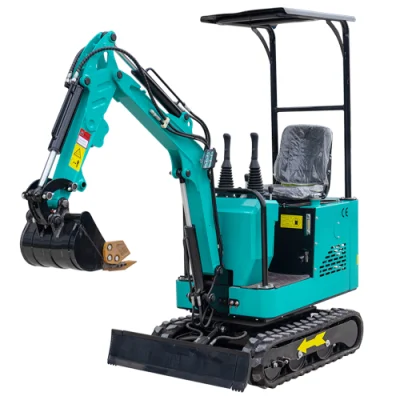

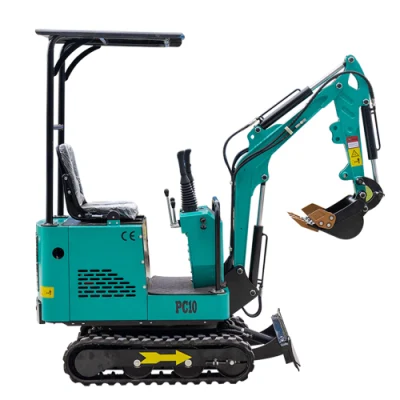

Mini Small Digger Excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse,digging trench It is with small engine, simple design, easy to maintain.
Feature:
1. The easy operation and convenient operation device are in line with the new generation human engineering working environment.
2. The engine has the features of strong power, low noise, low emission, low fuel consumption, and convenient maintenance etc. Its performance, noise, emissions are all up to the highest level in Europe.
3. The strengthened crawler enhances the wear resistance of the track effectively and prolongs the service life of the track at the same time,
4. Reasonable hydraulic layout greatly facilitates the inspection and maintenance of hydraulic system.
5. The precise instrument is the intelligent monitoring housekeeper of the excavator.
Product Parameter
ENGINE | |
Emission Standard | Tier 5 |
Make | KUBOTA |
Model | D1105 |
Power /Rotation speed | 14.1kw(20HP)@2000rpm |
Number of cylinder | 3 |
TRACK SYSTEM | |
Maximum Travel speed | 4km/h |
Width of track shoe | 230mm |
Number of track shoe per side | 38pcs |
Number of upper roller per side | 1 |
Number of bottom roller per side | 3 |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.07m³ |
Swing speed | 9 rpm |
Max. Grade ability | 35° |
Maximum Bucket digging force | 18KN |
Maximum Arm digging force | 11KN |
Hydraulic system pressure | 21.5Mpa |
Machine weight | 2000kg |
MACHINE SIZE | |
Overall dimension (L*W*H) | 3555mm*1300mm*2290mm |
Axle base(Track length on ground) | 1230mm |
Track gauge | 760mm |
Min.Ground clearance | 150mm |
Swing radius at tail | 650mm |
WORKING RANGE | |
Maximum Digging height | 3700mm |
Maximum Dumping height | 2440mm |
Maximum Digging depth | 2400mm |
Maximum Vertical digging depth | 2025mm |
Maximum Digging radius | 4040mm |
Minimum swing radius | 1610mm |
Maximum Lifting height of blade | 240mm |
Maximum Cutting depth of blade | 270mm |
Boom swing angle(Left) | 75° |
Package
Packed in wooden case
Delivery Time:15-20 Days after pre-paid
Payment:30% pre-paid and pay-off before shippment
Details Display
Company Profile
Characteristics of the company took the lead through the IS09001: 2008 international quality,self-loading concrete mixer truck cation, established a strict quality inspection system, with advanced equipment and testing instruments, the main design and development of ZL series loaders, dump trucks,wood fork machine, with reasonable design, low energy consumption, high efficiency, easy operation andmaintenance and so to meet the different requirements of customers, products sell well in more than 20provinces and cities in the country, and some products are exported to Africa, Southeast Asia, Russia,Mongolia and other countries and regions, , with first-class products, the best reputation and quality services in the industry prestigious, users of all ages.
Company is willing to "high quality, low price, service" business policy, to "re contract, credibility" business principles, to "open up, innovation, the pursuit of excellence" spirit of enterprise,continuous improvement process, improve product performance, improve product quality, and new and old customers from all walks of life in the economic construction and into, create brilliant .
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WALKER?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000
6.What kind of service can we get from WALKER?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
