Shantui 13.5ton Hydraulic Long Boom Excavator Se135

Welcome to our factory, where we specialize in manufacturing the high-quality Shantui 13.5ton Hydraulic Long Boom Excavator Se135. Contact us for more information.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SE135
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Operation Weight
13500kg
Power
92kw
Bucket Size
0.5m3
Dumping Height
5440mm
Digging Reach
7580mm
Quantity of Cylinders
4
Bore X Stroke
102 X 115 mm
Maximum Discharge Flow
2 X 130 L/Min
Transport Package
Nude
Specification
7860*2500*2855mm
Trademark
China
Origin
Jiangsu, China
HS Code
8501101000
Production Capacity
100units/Week

Product Description

Shantui SE135 13.5ron hydraulic excavator with quick hitch

Selling point:

* The original imported hydraulic system,with constant power and electric proportional control of the dual-pump dual-loop negative flow hydraulic system,which is stable and reliable..

* The accelerator features rapid and accuratecontrol. The application of non-linear Multi-dimensional power control optimization improves the working efficiency and reduces the fuel

consumption.The preset working modes of Heavy-Load (P), Economic (E), Automatic (A), and Breaking Hammer (B) are at the user's free choice based on theactual working condition.The

friendly human-machine interface eases the operations.

* Comfortable operating space, wide field of vision, according to ergonomic cab interior colors and effective control and reasonable arrangement of the device, high-performance shock absorber,

vibration isolation, low stiffness, vibration, shock absorption performance; To ensure the user's comfortable operation.

* Enhanced working device, rotary platform and heavy chassis, making the machine safe, stable, reliable and lasting work.

* With the streamlined design, the whole mold electrophoresis treatment cover, high rigidity, good weather resistance.


Optional equipment of machine:

Refueling pump
Cab warning lamp
Cab ceiling lamp
Cab overhead protective net
Cab front upper protective net
Cab front lower protective net
Rubber track

Parameters:
ENGINE Model Cummins QSF3.8T
Type 4-cylinder in line, water cooling,turbo charging
Quantity of cylinders 4
Bore x stroke 102 x 115 mm
Displacement 3.76 L
Power output 86 kW/2200 rpm
HYDRAULIC SYSTEM Pump Imported
Type Variable piston pump
Maximum discharge flow 2 x 130 L/min
Control circuit 3.9 MPa
Travel circuit 35 MPa
Swing circuit 27 MPa
TRAVEL SYSTEM Travel motor Variable axial piston motor
Travel brakes Lubricated double-disc
Parking brake Pressure release
Travel shoes 2 x 44
Travel speed 3.25/5.2 km/h
Drawbar pulling force 118 kN
Gradeability 70% (35°)
Minimum Ground clearance 425 mm
OIL CAPACITY Fuel tank 220 L
Cooling system 20 L
Engine oil 12 L
Hydraulic oil tank 177 L
System capacity 205 L
SWING SYSTEM Brake Pressure Release Mechanical Braking
Swing speed 11.3 rpm
Tail swing radius 2380 mm
Arm digging force 70 KN
Bucket digging force 97 KN
BUCKET Bucket capacity Backhoe bucket 0.55 m3 (SAE)
Number of bucket teeth 4
Bucket width 990 mm
Arm length 2.5 m
Maximum digging reach/Maximum digging reach at ground level 8.3 m/8.175 m
Maximum digging depth/height 5.49 m/8.495 m
Maximum dumping height 6.065 m
Minimum swing radius 2.445 m

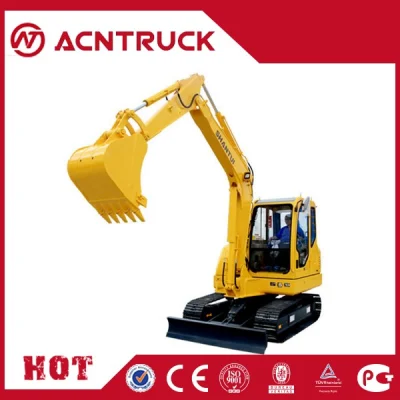

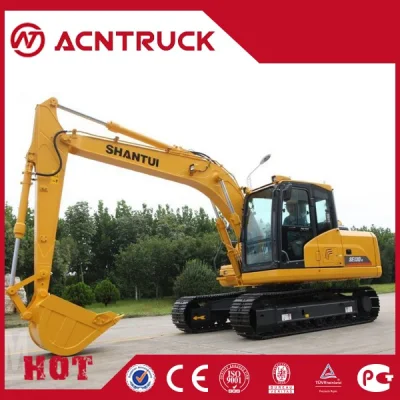

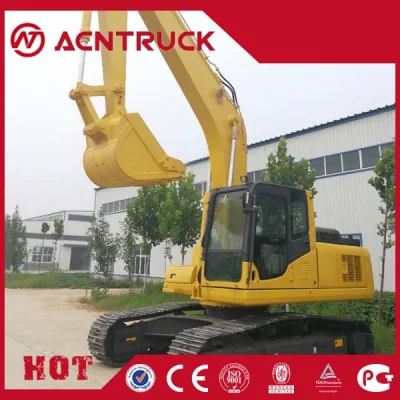

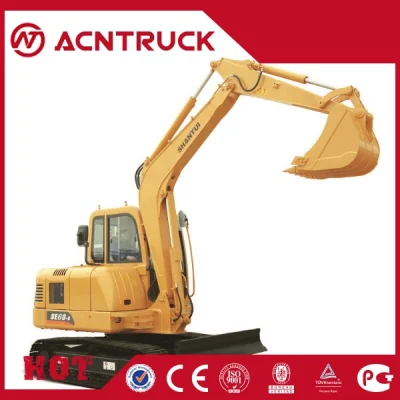

Product pictures
Shantui 13.5ton Hydraulic Long Boom Excavator Se135
Shantui 13.5ton Hydraulic Long Boom Excavator Se135


Shantui 13.5ton Hydraulic Long Boom Excavator Se135
Shantui 13.5ton Hydraulic Long Boom Excavator Se135

Shantui 13.5ton Hydraulic Long Boom Excavator Se135







Shantui 13.5ton Hydraulic Long Boom Excavator Se135
Shantui 13.5ton Hydraulic Long Boom Excavator Se135
Shantui 13.5ton Hydraulic Long Boom Excavator Se135
Shantui 13.5ton Hydraulic Long Boom Excavator Se135
Shantui 13.5ton Hydraulic Long Boom Excavator Se135
Shantui 13.5ton Hydraulic Long Boom Excavator Se135
Shantui 13.5ton Hydraulic Long Boom Excavator Se135
