Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System

Hydraulic Wood and Rock Grabbing Mini Excavator Machine - We are a factory specializing in high-quality hydraulic working systems for efficient and reliable earthmoving equipment.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
JG75X
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Nude Packing
Specification
5800*2100*2850mm
Trademark
JingGong
Origin
China
HS Code
842952
Production Capacity
8000sets/Year

Product Description

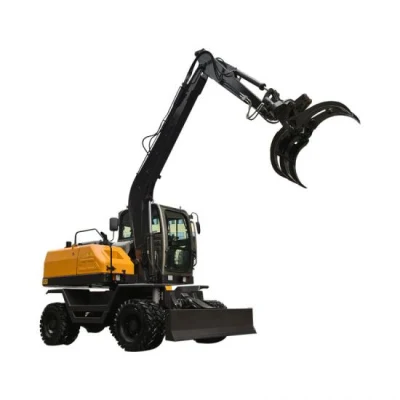

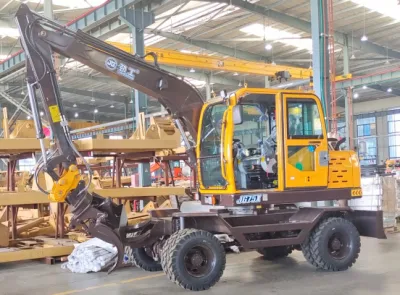

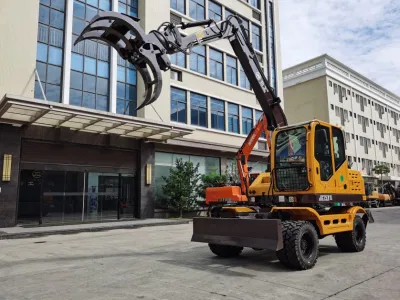

JG75X wheel excavator with log grapple

Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working SystemWood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working SystemWood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working SystemWood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System
SPECIFICATIONS
RANGE OF OPERATION Boom length 3300mm
Arm length 1850mm
Maximum Digging Reach 6240mm
Maximum Digging Depth 3200mm
Maximum Digging Force 45KN
Maximum Digging Height 6970mm
Maximum Dumping Height 4950mm
Back-end radius of gyration 1980mm
DIMENSION (Length*width*height) travel position 5800*2100*2850mm
Wheel base 2400mm
Track(Front/rear) 1660mm/1580mm
Ground clearance of counterweight 1060mm
Min ground clearance 285mm
TECHNICAL PARAMETERS Angle of rotation 360°
Machine weight 7000kg
Engine model YN38GBZ/4102(Turbocharged)
Rated Power 48KW
Rated Speed 2200r/min
Hydraulic system working pressure 20Mpa
Hydraulic system flow 150L/min
Variable piston pump 72ml/r
Max Hauling force 45KN
Walking speed 25km/h
Grade Climbing ability 58%/30°
Tyre model 7.5-16
Volume Of Bucket 0.2-0.3m3
Revolution Overdrive Pressure 20Mpa
Full circle swinging time 5.5s
Fqt Fuel Quantity  ≥4L/h
Hydraulic Tank Capacity  110L
Capacity Of The Fuel Tank 110L
Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System

Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System

Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System

Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System

Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System

Wood Grabbing and Rock Grabbing Mini Excavator Machine, Using Hydraulic Working System
