Mobile Material Handling Machine for Scrap Grabbing Handling

Introducing our Mobile Material Handling Machine for Scrap Grabbing Handling. As a factory, we offer efficient and reliable solutions for scrap handling.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SWMH500K
Size
Large-Scale
Certification
ISO9001: 2000, ISO14001
Condition
New
Max. Lifting Height
17 M
Max. Working Radius
15.5 M
Max. Travel Speed
15 Km/H
Engine Power
570HP
Operating Weight
50 Ton
Warranty
One Year
Transport Package
Nude
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84292090
Production Capacity
100 PCS / Year

Product Description

Highlights of SINOWAY Material Handling Euqipment

Our Material handler has a "double force" system for internal combustion engine and 380V electric interchange operation; "double force" system with explosion-proof machine and electric interchangeable operation; "double force" system with optional explosion-proof machine and electric interchange operation; The use of explosion-proof machine, electric interchangeable "double force" system; optional explosion-proof machine, fully enclosed electrical, fire protection and save 60% energy consumption compared to internal combustion engine operations; it can quickly replace different hydraulic grabs.The electric operation has over-current and heat-discharge protection devices; Phase sequence automatic identification to prevent oil pump reversal device;Hydraulic system power failure, oil self-locking protection device;There are a number of complex movements during the operation to improve efficiency;The hydraulic system is equipped with an air-cooled radiator;The gripper can automatically turn and reversing 360 degrees; Both Rigid cab elevation and Hydraulic cab elevation are available.
Also, timber grab, bulk material grab, orange peel grab, sorting grab, hydraulic grab, lifting magnet can be choosed.

Product Show
Mobile Material Handling Machine for Scrap Grabbing Handling

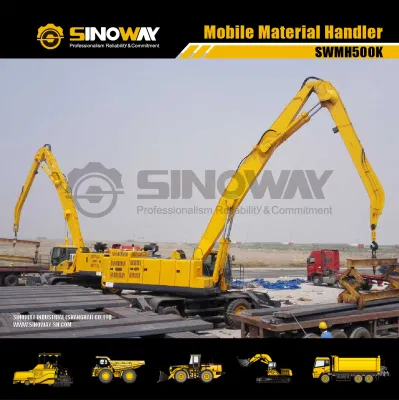

Mobile Material Handling Machine for Scrap Grabbing Handling

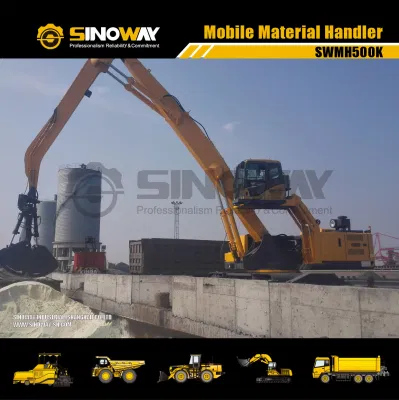

Mobile Material Handling Machine for Scrap Grabbing Handling
Mobile Material Handling Machine for Scrap Grabbing Handling

Specifications
Power
Electrical motor 200KW
Rated speed 1480rpm
Max. swing speed(Electrical motor) 5r/min
Diesel engine 266KW
Rated speed 2200rpm
Max. swing speed(Diesel engine) 7r/min
Fuel tank capacity 450L

Main Technical Specification
Max. lifting moment 80t.m
Max. swing torque 140kN.m
Main luffing time(Max. speed)
-Fall boom(Electrical/Diesel) ≤17s/≤11s
-Rise boom(Electrical/Diesel) ≤21s/≤11s
Auxiliary luffing time(Max. speed)
-Fall boom(Electrical/Diesel) ≤20s/≤11s
-Rise boom(Electrical/Diesel) ≤9s/≤6s
Outrigger
-Full stretching(Electrical/Diesel) ≤16s/≤11s
-Full retracting(Electrical/Diesel) ≤12s/≤10s
Outrigger distance
-Lengthways 4500mm
-Transversal 4200mm

Travelling System
Max. travelling speed 15km/h
Min. turning radius 8.6m
Max. gradeability 15%
Min. ground clearance 250mm
Max. traction force 115kN
Approach angle 15.0°
Departure angle 15.0°
Braking distance(Speed:15km/h) ≤6.5m
Operating weight 50000kg(Including clam shell)

Dimension
Overall length 15000mm
Overall width 3500mm
Overall height 3660mm
Wheelbase 3600mm
Max.lifting height of cab 6140mm
Rear-end length/Slewing radius 4420mm
Counterweight clearance 1630mm
Upperstructure width 3250mm
